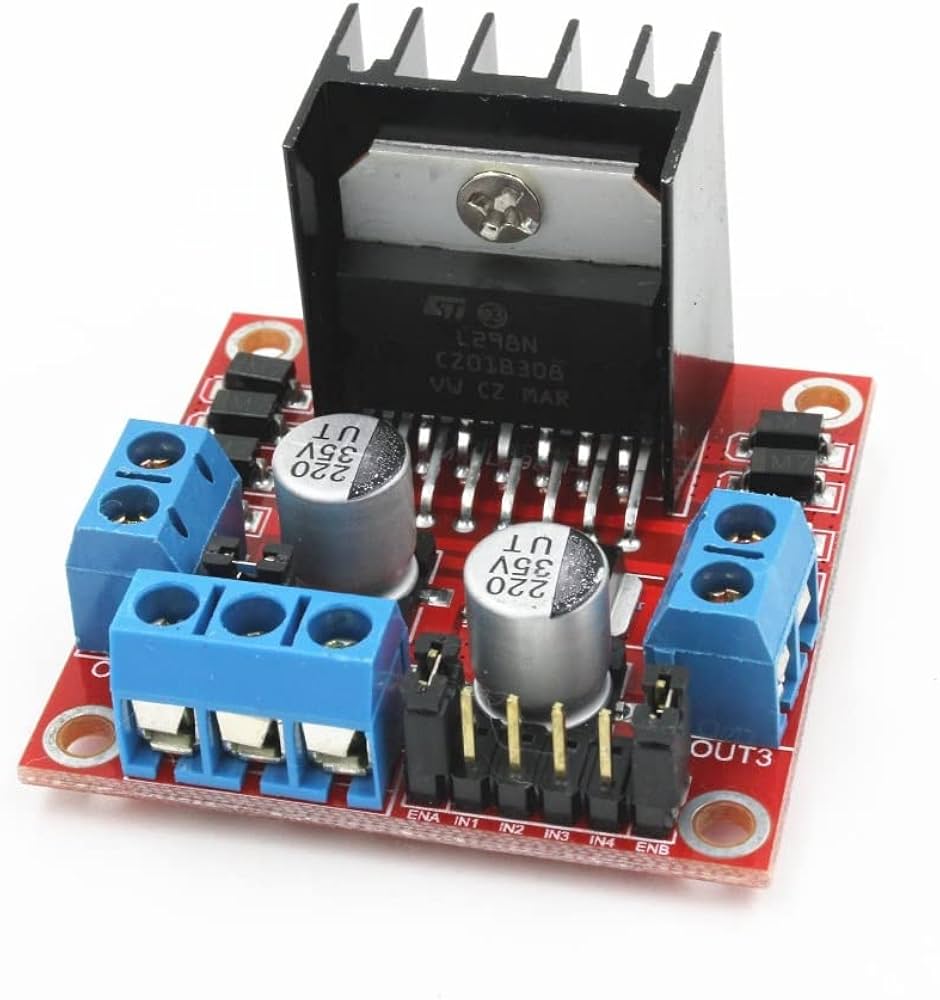

L298N dual H-Bridge Motor Driver

• High-performance dual H-Bridge motor driver designed for controlling DC motors and stepper motors.

• Based on the reliable L298N driver IC, capable of driving two DC motors independently.

• Supports bidirectional motor control with forward, reverse, stop, and speed regulation functions.

• Motor operating voltage range from 5V to 35V DC.

• Delivers up to 2A peak current per channel, suitable for a wide variety of robotics and automation applications.

• Built-in 5V voltage regulator for powering compatible control circuits.

• PWM-enabled inputs allow precise motor speed control.

• Compatible with Arduino, ESP32, ESP8266, Raspberry Pi, STM32, and other microcontroller platforms.

• Screw terminal connections ensure secure and reliable wiring.

• Robust design with integrated heat sink for improved thermal performance.

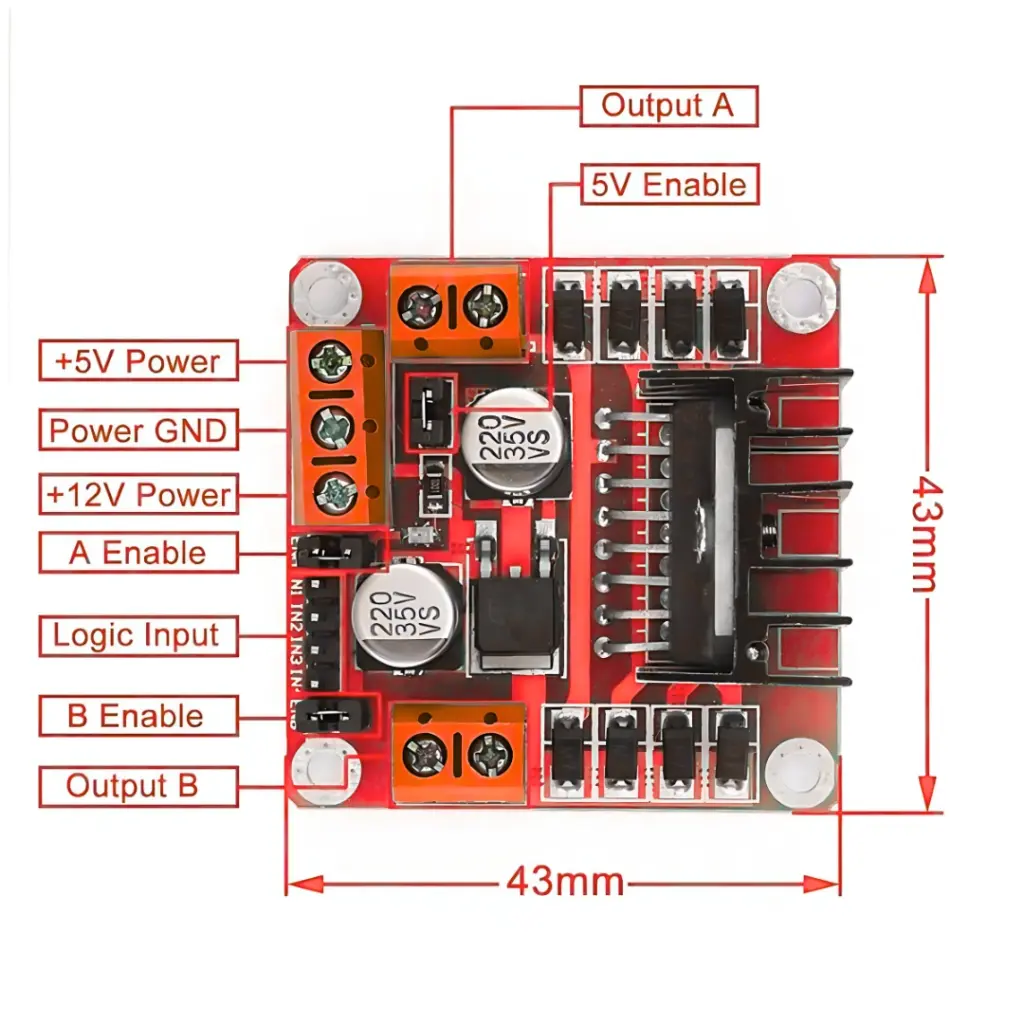

Technical Specifications

• Driver IC: L298N Dual H-Bridge

• Motor Supply Voltage: 5V – 35V DC

• Logic Voltage: 5V DC

• Peak Output Current: 2A per Channel

• Number of Channels: 2

• Control Method: PWM, Direction Control

• Motor Types Supported: DC Motors and Stepper Motors

• Built-in 5V Regulator: Yes

• Operating Temperature: -20°C to +135°C

Applications

• Mobile Robotics

• Smart Cars and RC Vehicles

• Line Follower Robots

• Obstacle Avoidance Robots

• Conveyor and Automation Systems

• Stepper Motor Control Projects

• Educational and STEM Learning Kits

• DIY Electronics and Embedded System Development
